#include <tpl_binTreeOps.H>

Inheritance diagram for Aleph::BinTree_Operation< Node, Cmp >:

Public Types
using	Key = typename Node::key_type

using	key_type = typename Node::key_type
	The type of key.

Public Member Functions
Cmp &	key_comp () noexcept
	Return the comarison criteria.

Cmp &	get_compare () noexcept

	BinTree_Operation (Cmp __cmp=Cmp()) noexcept
	The type of key. More...

Node *	search (Node *root, const Key &key) noexcept

Node *	search_parent (Node root, const Key &key, Node &parent) noexcept

Node *	search_rank_parent (Node *root, const Key &key) noexcept

Node *	insert (Node &root, Node p) noexcept

Node *	insert_dup (Node &root, Node p) noexcept

Node *	search_or_insert (Node &r, Node p) noexcept

bool	split_key_rec (Node &root, const Key &key, Node &ts, Node *&tg) noexcept

void	split_key_dup_rec (Node root, const typename Node::key_type &key, Node &ts, Node *&tg) noexcept

Node *	remove (Node *&root, const Key &key) noexcept

Node *	insert_root (Node &root, Node p) noexcept

Node *	insert_dup_root (Node &root, Node p) noexcept

Node *	join_preorder (Node t1, Node t2, Node *&dup) noexcept

Node *	join (Node t1, Node t2, Node *&dup) noexcept

void	split_key (Node root, const Key &key, Node &l, Node *&r) noexcept

Node *	insert_root_rec (Node root, Node p) noexcept

Node *	search_or_insert_root_rec (Node root, Node p) noexcept

Protected Attributes
Cmp	cmp

Detailed Description

template<class Node, class Cmp = Aleph::less<typename Node::key_type>>
class Aleph::BinTree_Operation< Node, Cmp >

Functor encompassing basic operation for binary search trees.

See also: BinNode

Constructor & Destructor Documentation

◆ BinTree_Operation()

template<class Node , class Cmp = Aleph::less<typename Node::key_type>>

Aleph::BinTree_Operation< Node, Cmp >::BinTree_Operation ( Cmp __cmp = Cmp() )

inlinenoexcept

The type of key.

Initialize the functor with comarison criteria __cmp

Member Function Documentation

◆ get_compare()

template<class Node , class Cmp = Aleph::less<typename Node::key_type>>

Cmp& Aleph::BinTree_Operation< Node, Cmp >::get_compare ( )

inlinenoexcept

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

◆ insert()

template<class Node , class Cmp = Aleph::less<typename Node::key_type>>

Node* Aleph::BinTree_Operation< Node, Cmp >::insert	(	Node *&	root,
		Node *	p
	)

inlinenoexcept

Insert a node p in a binary search tree

insert(root, p) inserts the node p in the binary search tree with root

Parameters

[in,out]	root	of tree
[in]	p	pointer to the node to be inserted

Returns: p if this was inserted; that is if p->get_key() is not in the tree; otherwise, Node::NullPtr is returned

Here is the call graph for this function:

Here is the caller graph for this function:

◆ insert_dup()

template<class Node , class Cmp = Aleph::less<typename Node::key_type>>

Node* Aleph::BinTree_Operation< Node, Cmp >::insert_dup	(	Node *&	root,
		Node *	p
	)

inlinenoexcept

Insert a node p in a binary search tree

insert_dup(root, p) inserts the node p in the binary search tree with root. The key contained in p can be already present in the tree.

Parameters

[in,out]	root	of tree
[in]	p	pointer to the node to be inserted

Returns: the pointer p

Here is the call graph for this function:

◆ insert_dup_root()

template<class Node , class Cmp = Aleph::less<typename Node::key_type>>

Node* Aleph::BinTree_Operation< Node, Cmp >::insert_dup_root	(	Node *&	root,
		Node *	p
	)

inlinenoexcept

Insert node p as root of a binary search tree. The key of p can be duplicated.

Parameters

[in,out]	root	of tree
[in]	p	node to insert as root

Returns: the pointer p which has became the root of tree

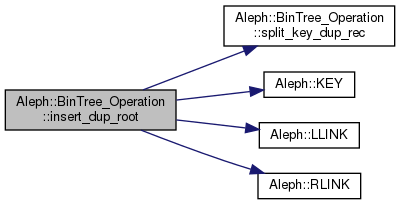

Here is the call graph for this function:

◆ insert_root()

template<class Node , class Cmp = Aleph::less<typename Node::key_type>>

Node* Aleph::BinTree_Operation< Node, Cmp >::insert_root	(	Node *&	root,
		Node *	p
	)

inlinenoexcept

Insert the node p as root of a binary search tree

insert_root(root, p) inserts in the tree root the node p. After insertion, p becomes the new root of tree.

Parameters

[in,out]	root	of binary search tree
[in]	p	pointer to node to insert

Returns: a pointer to p if this was inserted; that is, if p->get_key() was not present in the tree. Otherwise, no insertion is done and Node::NullPtr is returned

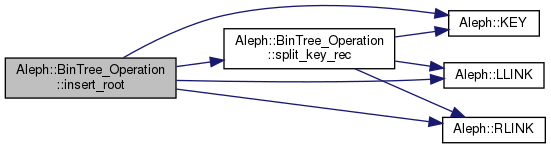

Here is the call graph for this function:

Here is the caller graph for this function:

◆ insert_root_rec()

template<class Node , class Cmp = Aleph::less<typename Node::key_type>>

Node* Aleph::BinTree_Operation< Node, Cmp >::insert_root_rec	(	Node *	root,
		Node *	p
	)

inlinenoexcept

Insert a node as root in a binary search tree.

This version first insert p as a leaf of tree. Then p is rotated until the root.

Parameters

[in]	root	of tree
[in]	p	pointer to the node to insert

Returns: pointer to p if p->get_key() is not in the tree. Otherwise the function returns Node::NullPtr

Here is the call graph for this function:

◆ join()

template<class Node , class Cmp = Aleph::less<typename Node::key_type>>

Node* Aleph::BinTree_Operation< Node, Cmp >::join	(	Node *	t1,
		Node *	t2,
		Node *&	dup
	)

inlinenoexcept

Fast union of two binary search trees

join(t1, t2, dup) joins the nodes of t1 with the nodes of t2. The duplicated keys of t2 are copied in the binary search tree dup.

Parameters

[in]	t1	root of first tree
[in]	t2	root of second tree
[out]	dup	tree where the duplicated keys of t2 are put

Returns: pointer to the root of resulting join

Here is the call graph for this function:

◆ join_preorder()

template<class Node , class Cmp = Aleph::less<typename Node::key_type>>

Node* Aleph::BinTree_Operation< Node, Cmp >::join_preorder	(	Node *	t1,
		Node *	t2,
		Node *&	dup
	)

inlinenoexcept

Union of two binary search trees

Warning: This union is $O(n \lg m)$ where n and m are the sizes of t1 and t2respectively. Use join() which is much more faster

Parameters

[in]	t1	root of first tree
[in]	t2	root of second tree
[out]	dup	root of tree where the duplicated keys will be put

Returns: a pointer to the resulting root of tree

Here is the call graph for this function:

◆ remove()

template<class Node , class Cmp = Aleph::less<typename Node::key_type>>

Node* Aleph::BinTree_Operation< Node, Cmp >::remove	(	Node *&	root,
		const Key &	key
	)

inlinenoexcept

Remove a key from a binary search tree

Parameters

[in,out]	root	of tree
[in]	key	to remove

Returns: a valid pointer to the removed node if key was found in the tree, Node::NullPtr otherwise

Here is the call graph for this function:

◆ search()

template<class Node , class Cmp = Aleph::less<typename Node::key_type>>

Node* Aleph::BinTree_Operation< Node, Cmp >::search	(	Node *	root,
		const Key &	key
	)

inlinenoexcept

Search a node with a specific key.

Parameters

[in]	root	of the tree
[in]	key	to be searched

Returns: a pointer to a node containing the key if this was found; Node::NullPtr otherwise

Here is the call graph for this function:

◆ search_or_insert()

template<class Node , class Cmp = Aleph::less<typename Node::key_type>>

Node* Aleph::BinTree_Operation< Node, Cmp >::search_or_insert	(	Node *&	r,
		Node *	p
	)

inlinenoexcept

Search or insert a node in a binary search tree.

search_or_insert(root, p) searches in root a node containing p->get_key(). If found, then this node is returned. Otherwise p is inserted and returned.

Parameters

[in,out]	r	roor of tree
[in]	p	node to search or insert

Returns: p if its key was not in the tree; otherwise, a pointer containing the tree is returned.

Here is the call graph for this function:

◆ search_or_insert_root_rec()

template<class Node , class Cmp = Aleph::less<typename Node::key_type>>

Node* Aleph::BinTree_Operation< Node, Cmp >::search_or_insert_root_rec	(	Node *	root,
		Node *	p
	)

inlinenoexcept

Search and eventually insert p as root in a binary search tree

Parameters

[in]	root	of tree
[in]	p	pointer to the node to eventually insert

Returns: if p is inserted, then it returns p; otherwise, it returns a pointer to the tree node containing to p->get_key()

Here is the call graph for this function:

◆ search_parent()

template<class Node , class Cmp = Aleph::less<typename Node::key_type>>

Node* Aleph::BinTree_Operation< Node, Cmp >::search_parent	(	Node *	root,
		const Key &	key,
		Node *&	parent
	)

inlinenoexcept

Search a key and find its node and parent.

Parameters

[in]	root	of tree
[in]	key	to search
[out]	parent	pointer to parent node if key was found. Otherwise value is indetermined

Returns: a valid pointer to a node containing key if this is found; otherwise, it returns a pointer to the last visited node

◆ split_key()

template<class Node , class Cmp = Aleph::less<typename Node::key_type>>

void Aleph::BinTree_Operation< Node, Cmp >::split_key	(	Node *	root,
		const Key &	key,
		Node *&	l,
		Node *&	r
	)

inlinenoexcept

Split a binary search tree according to a key.

split_key(root, key, l, r) splits the tree root according to key. At the end, l contains all the keays lesser than key and r all the keys greater or equal than key.

Parameters

[in,out]	root	of tree to split
[in]	key	for splitting
[out]	l	tree with keys lesser than `key`
[out]	r	tree with keys greater or equal than `key`

Here is the call graph for this function:

◆ split_key_dup_rec()

template<class Node , class Cmp = Aleph::less<typename Node::key_type>>

void Aleph::BinTree_Operation< Node, Cmp >::split_key_dup_rec	(	Node *	root,
		const typename Node::key_type &	key,
		Node *&	ts,
		Node *&	tg
	)

inlinenoexcept

Split a tree according to a key value

split_key_dup_rec(root, key, ts, tg) splits according to key the tree withrootand build two trees.t1contains the keys lesser thankeyandt2the keys greater or equal thankey`.

Parameters

[in,out]	root	of tre to be split
[in]	key	for splitting
[out]	ts	tree with the keys lesser than `key`
[out]	tg	tree with the keys greater or equal than `key`

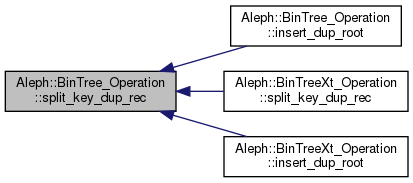

Here is the caller graph for this function:

◆ split_key_rec()

template<class Node , class Cmp = Aleph::less<typename Node::key_type>>

bool Aleph::BinTree_Operation< Node, Cmp >::split_key_rec	(	Node *&	root,
		const Key &	key,
		Node *&	ts,
		Node *&	tg
	)

inlinenoexcept

Split recursively according to a key.

split_key_rec(root, key, ts, tg) splits the tree with root in two trees t1 which contain the keys lesser than key and t2 which contains the keys greater than key.

The split only is performed if key is not in the tree.

Parameters

[in,out]	root	of tree
[in]	key	for slitting
[out]	ts	tree with keys lesser than `key`
[out]	tg	tree with keys greater than `key`

Returns: true if the tree wa split; that if key was not in the tree. Otherwise the split is not performed and it return false

Here is the call graph for this function:

Here is the caller graph for this function:

The documentation for this class was generated from the following file:

tpl_binTreeOps.H
