#include <tpl_graph.H>

Inheritance diagram for Aleph::Path< GT >::Iterator:

Collaboration diagram for Aleph::Path< GT >::Iterator:

Public Types
using	Set_Type = DynDlist
	The type of container.

using	Item_Type = T
	The type of element stored in the container.

Public Member Functions
	Iterator (const Path &path) noexcept
	Create an iterator on the first node of `path`

Node *	get_current_node () const

Node *	get_current_node_ne () const noexcept

Arc *	get_current_arc () const

Arc *	get_current_arc_ne () const noexcept

Node *	get_curr_ne () const noexcept

Node *	get_curr () const

pair< Node , Arc >	get_pair () const

tuple< Node , Arc >	get_tuple () const

tuple< Node , Arc >	get_tuple_ne () const noexcept

bool	has_current_arc () const noexcept

bool	has_current_node () const noexcept
	Return `true` if the iterator has a current node.

long	get_pos () const noexcept
	Return the ordinal position of current item.

void	next_ne () noexcept

void	next ()

void	prev ()

void	reset_first () noexcept
	Reset the iterator to the first item.

void	reset_last () noexcept
	Reset the iterator to the last item.

void	end () noexcept
	Put theiterator at the end state (where there is no current item)

void	insert (const T &item)

void	insert (T &&item)

void	append (const T &item)

void	append (T &&item)

void	insert_list (DynDlist &list)

void	append_list (DynDlist &list)

T	del ()

void	set (Dlink *new_curr) noexcept

bool	has_curr () const noexcept
	Return `true` if the iterator has current item.

bool	is_last () const noexcept

bool	is_in_first () const noexcept
	Return `true` if the iterator is positiones on the first item.

bool	is_in_last () const noexcept
	Return `true` if the iterator is positiones on the last item.

void	prev_ne () noexcept

bool	operator== (const Iterator &it) const noexcept
	Return `true` if `this` and it are positioned on the same item.

bool	operator!= (const Iterator &it) const noexcept
	Return `true` if `this` and `it` hace different states.

Dlink *	del_ne () noexcept

bool	verify (Dlink *l) const
	Return `true` if the iterator is on the list pointed by `l`

bool	verify (const Iterator &it) const
	Return `true` if `this` and `it` are on the same list.

Detailed Description

template<class GT>
class Aleph::Path< GT >::Iterator

Iterator on nodes and arcs of a path

See also: Path

Member Function Documentation

◆ append() [1/2]

template<typename T = int>

void Aleph::DynDlist< T >::Iterator::append ( const T & item )

inlineinherited

Append by copy an item before the current item.

This method appends a copy of item before the current item of iterator. The current item is not moved.

Parameters

[in] item the item to append

Exceptions

bad_alloc	if there is no enough memory
overflow_error	if there is no current item

Here is the call graph for this function:

Here is the caller graph for this function:

◆ append() [2/2]

template<typename T = int>

void Aleph::DynDlist< T >::Iterator::append ( T && item )

inlineinherited

Append by movement an item after the current item.

This method appends a new element in the list before the current and then item is moved. The current item is not moved.

Parameters

[in] item the item to append

Exceptions

bad_alloc	if there is no enough memory
overflow_error	if there is no current item

Here is the call graph for this function:

◆ append_list()

template<typename T = int>

void Aleph::DynDlist< T >::Iterator::append_list ( DynDlist & list )

inlineinherited

Move and append all elements of list before the current item of iterator.

This operation takes constant time and puts the element of list just before the current item. The current item of iterator is not moved. A prev() operation will move forward the iterator to the last item of list.

After operation list becomes empty, since all its items were moved to the list on which one is iterating.

Parameters

[in,out] list to append after current item. It becomes empty.

Exceptions

overflow_error if there is no current item

Here is the call graph for this function:

◆ del()

template<typename T = int>

T Aleph::DynDlist< T >::Iterator::del ( )

inlineinherited

Remove from the list the current node and move the iterator one position forward.

Returns: a copy to removed item

Exceptions

overflow_error if there is no current item

Here is the call graph for this function:

◆ get_curr_ne()

template<class GT>

Node* Aleph::Path< GT >::Iterator::get_curr_ne ( ) const

inlinenoexcept

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

◆ get_current_arc()

template<class GT>

Arc* Aleph::Path< GT >::Iterator::get_current_arc ( ) const

inline

Return the current arc of path.

Note: A path of n nodes has n - 1 arcs. So if the iterator is pistioned on the last node, the get_current_arc() has not current arc and will throw exception.

Returns: pointer to the current arc

Exceptions

overflow_error if path is empty of iterator has not current node

◆ get_current_node()

template<class GT>

Node* Aleph::Path< GT >::Iterator::get_current_node ( ) const

inline

Return the current node of path. Throw overflow_error if path is empty of iterator has not current node

◆ get_pair()

template<class GT>

pair<Node*, Arc*> Aleph::Path< GT >::Iterator::get_pair ( ) const

inline

Return a pair with the current node and arc

Note: If the iterator is positioned on the last node, then its arc is nullptr.

Returns: a pair whose first element is the current node and second element its outcoming arc

Exceptions

overflow_error if path is empty of iterator has not current node

◆ get_tuple()

template<class GT>

tuple<Node*, Arc*> Aleph::Path< GT >::Iterator::get_tuple ( ) const

inline

Return a tuple with the current node and arc

Note: If the iterator is positioned on the last node, then its arc is nullptr.

Returns: a tuple whose first element is the current node and second element its outcoming arc

Exceptions

overflow_error if path is empty of iterator has not current node

◆ has_current_arc()

template<class GT>

bool Aleph::Path< GT >::Iterator::has_current_arc ( ) const

inlinenoexcept

Return true if iterator has current arc.

Note: If the iterator is on the last node, then there is no current arc.

Returns: a boolean indicating if the iterator is positioned on an arc

Here is the caller graph for this function:

◆ insert() [1/2]

template<typename T = int>

void Aleph::DynDlist< T >::Iterator::insert ( const T & item )

inlineinherited

Insert by copy an item after the current item.

This method inserts a copy of item after the current item of iterator. The current item is not moved.

Parameters

[in] item the item to insert

Exceptions

bad_alloc	if there is no enough memory
overflow_error	if there is no current item

Here is the call graph for this function:

Here is the caller graph for this function:

◆ insert() [2/2]

template<typename T = int>

void Aleph::DynDlist< T >::Iterator::insert ( T && item )

inlineinherited

Insert by movement an item after the current item.

This method inserts a new element in the list after the current and then item is moved. The current item is not moved.

Parameters

[in] item the item to insert

Exceptions

bad_alloc	if there is no enough memory
overflow_error	if there is no current item

Here is the call graph for this function:

◆ insert_list()

template<typename T = int>

void Aleph::DynDlist< T >::Iterator::insert_list ( DynDlist & list )

inlineinherited

Move and insert all elements of list after the current item of iterator.

This operation takes constant time and puts the element of list just after the current item. The current item of iterator is not moved. A next() operation will move forward the iterator to the first item of list.

After operation list becomes empty, since all its items were moved to the list on which one is iterating.

Parameters

[in,out] list to insert after current item. It becomes empty.

Exceptions

overflow_error if there is no current item

Here is the call graph for this function:

◆ next()

template<typename T = int>

void Aleph::DynDlist< T >::Iterator::next ( )

inlineinherited

Move the iterator one item forward. Throw overflow_error if iterator has not current item

Here is the call graph for this function:

Here is the caller graph for this function:

◆ next_ne()

template<typename T = int>

void Aleph::DynDlist< T >::Iterator::next_ne ( )

inlinenoexceptinherited

Move the iterator one position forward guaranteeing no exception. Be careful.

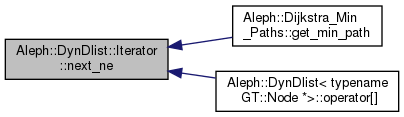

Here is the call graph for this function:

Here is the caller graph for this function:

◆ prev()

template<typename T = int>

void Aleph::DynDlist< T >::Iterator::prev ( )

inlineinherited

Move the iterator one item backward. Throw underflow_error if iterator has not current item

Here is the call graph for this function:

◆ prev_ne()

void Aleph::Dlink::Iterator::prev_ne ( )

inlinenoexceptinherited

Move the iterator one position backward guaranteeing no exception. Be careful.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ set()

void Aleph::Dlink::Iterator::set ( Dlink * new_curr )

inlinenoexceptinherited

Set the current node .

This method set the current node to new_curr, which of course must be a valid pointer to a item in the list.

Parameters

[in] new_curr pointer to the new current item

Here is the caller graph for this function:

The documentation for this class was generated from the following file:

tpl_graph.H
